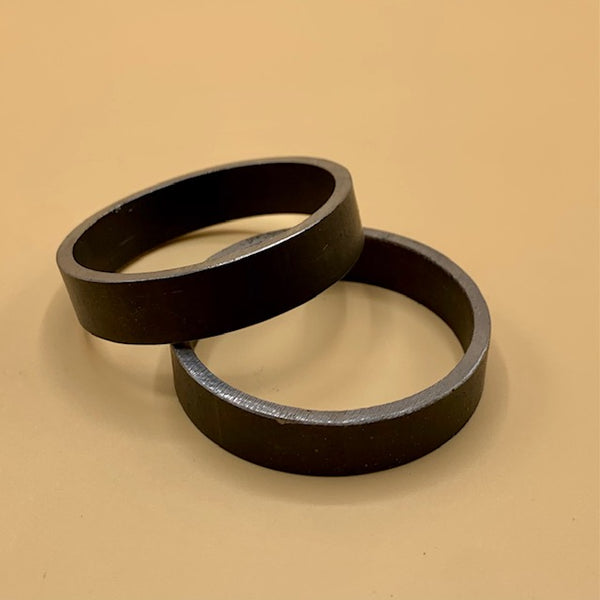

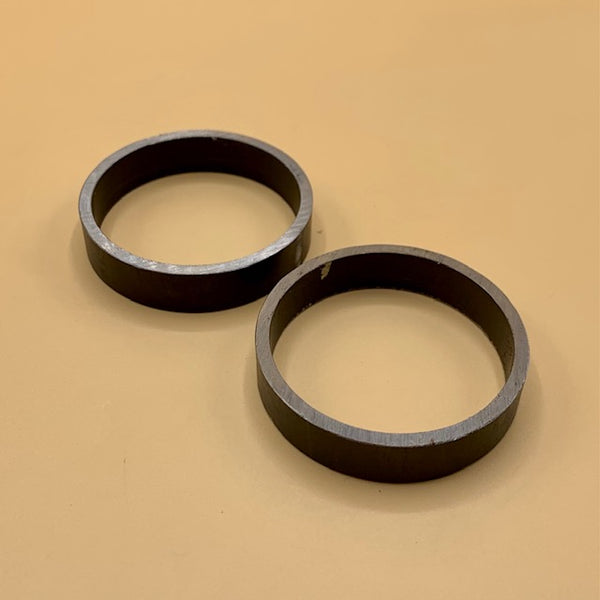

Kit includes 2 Weld Rings

These are Mild Steel Weld Rings,  They are used to secure the coilover sleeve at a fixed height on the strut housing.    The strut housings must be cleaned of any paint, oil, or plating before these are welded on.    For placement, we recommend leaving about a 1" gap between the top of the threaded sleeve and the top of the strut housing.

Dimensions are

Outer Diameter : 60.5mm

Inner Diameter : 53.5mm

Height: 12.5mm

FRONT STRUT MODIFICATION INSTALL GUIDE:

https://docs.google.com/document/d/1gTnHv9TxuaBu22mSpe_KPQe9ejPnZ7R2G9PDUtytPPY/edit?usp=sharing
